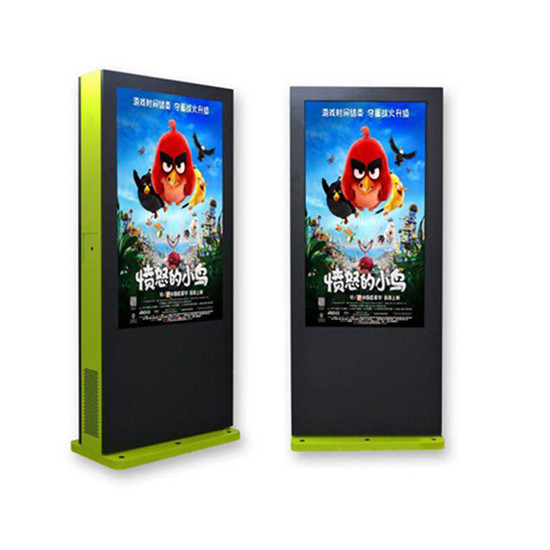

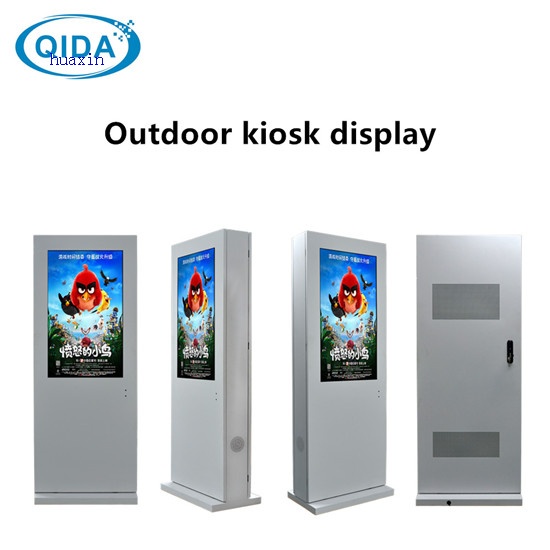

Outdoor free standing Display

Color can be customized

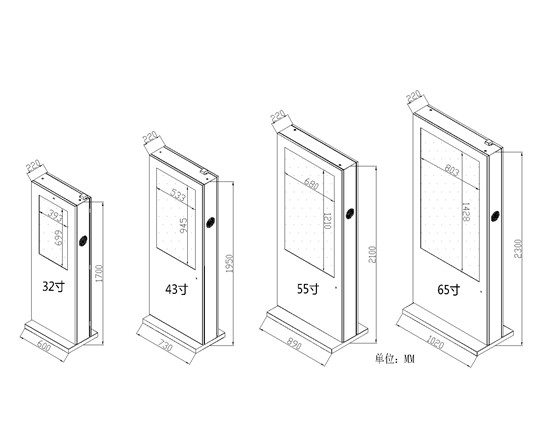

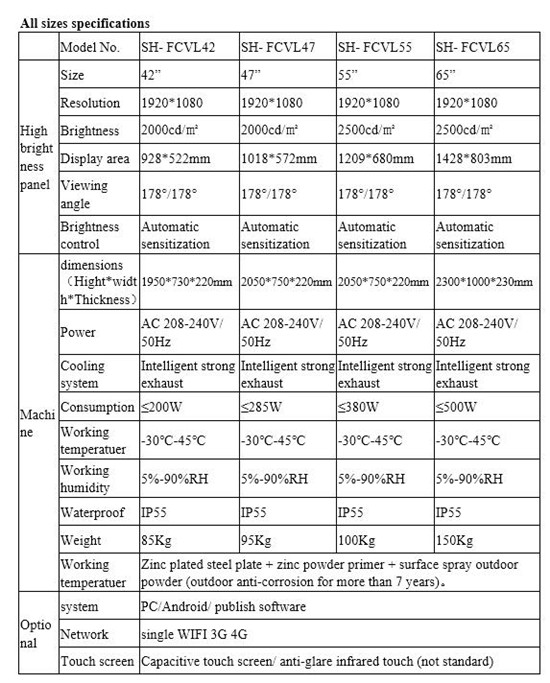

All sizes:

Features：
Structure: waterproof, dustproof, sun protection, corrosion proof, explosion-proof, anti UV, anti-theft, biological protection, Mold, beautiful appearance, can be customized.
Display: HD, highbrightness, smart, full angle view.
Electronic: lightning protection, leakage protection, intelligent timing, intelligent temperature control system,
Optional: support remote monitoring, touch interaction, smart card / ID card / two-dimensional code recognition, Intelligent printing.

Structure:
Housing: 1.2 or 1.5mm galvanized plate, spray Aksu outdoor special powder, outdoor anti-corrosion for more than 7 years.
Waterproof: IP55.
Dustproof: special dustproof filter is designed in the air inlet and outlet, which can filter the dust in the air and prevent mosquitoes from entering the machine.
High transparent glass: 6mm toughened glass, light transmittance is higher than 97%, high transmittance.
Maintenance: open door is in the front, air pressure supporting rod open the door, adopt block design, easy to install and maintenance,
Anti-theft: base / mount use internal lock design, to prevent the removal of screws from the outside, real security.
Mounting: Free standing ,wall mount, can be customized

Display:
Panel: outdoor high brightness lcd panel,
Brightness: 1000-2500nit, can be seen under strong light,
ifetime: 100000/hours
Resolution: 1920*1080
Viewing angle: 178/178.
Intelligent light sensor: can adjust the screen brightness according to the environment, users and viewers can read the display at any time, good for eyes.
Intelligent color calibration:automatic calibration contrast color or manual fine-tuning, showing the perfect picture 。

Intelligent temperature control system:
Intelligent direct wind (forced air cooling) cooling system, special heat dissipation design.
Equipped with high temperature automatic power-off protection function, If there is unnormal high temperature caused by outside or inside machine, the system will stop electricity, let the display off, and the fans will be cooling at the same time, reach the best protection.

Electric:
Two systems for choice, windows and android, support remote control and local program publish arrangement system (Optional）。
Well-known brand industrial switching power supply, apply to world wide different currency, safety and long life.
leakage protection, lightning protection and other configurations, a full range of security protection。
Configuration precise timer, two options in English and Chinese, can be repeated many times, according to the day, week, month, timing switch machin

System:
Android system
Option: A20、A83、3188、3288 Mainboard。2+8G、2+16G、2+32G、4+16。
Android 4.4 or 5.0
Bluetooth 4.0
Memory：1G/2G/4G     Built in storage：8G/16G/32G
Decoding resolution:：1920*1080 and above
Play mode: support cycle, timing, insert, split screen, playback, support for multimedia materials, such as any combination of play mode
Network support: Ethernet, wireless peripheral expansion, (optional 3G/4G)
Video playback: support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC and other formats.
Image format: support JPEG, PNG, GIG, BMP, etc.
File output format: support TXT, PPT, WORD, ECELE, etc.
Other formats: SWF, HTML, XLS, MMS, streaming media, static web sites, applications, weather forecasts, clocks, etc.
Video output: support LVDS format video output
Audio output: support CVBS video output, left and right channel output, built-in 2*10W amplifier
Support: RTC real time clock, timing boot, U disk update playlists, U disk upgrade network upgrade, remote control

Windows system
X86 PC
CPU：intel I3/I5/I7/1900（can customize）
Memory:2G/4G/8G
Hard disk: Mechanical disk 500G/1000G、Solid State Disk 64G/128G/256G
Operating system:：WINDOWS7/10、LINUX, Ubuntu
Decoding resolution:：1920*1080 and above.
Network support: Ethernet (optional 2), Option (Wifi, 3G,4G) Video: support HDMI, VGA format video output
Audio: left and right channel output, built-in 2*5W high quality audio.
Peripheral support: can support 4*USB, 2* serial port (optional 6), 2*SATA interface
Optional support information release system: RTC real time clock, timing boot, U disk update playlist, U disk network upgrade, remote control.
