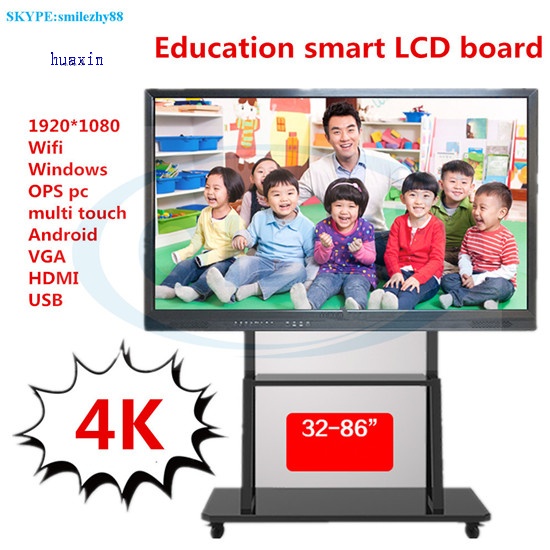

Smart lcd board
Smart lcd board
Smart lcd board
Smart lcd board
Product name : Smart lcd board
Item : 201872493145
 Enlarge Image                   Back



Details:

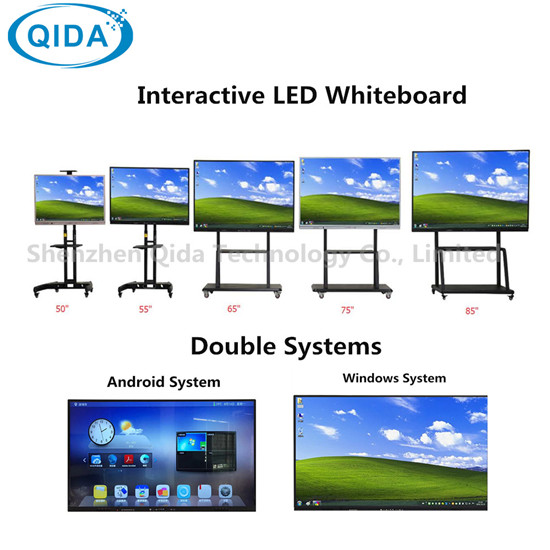

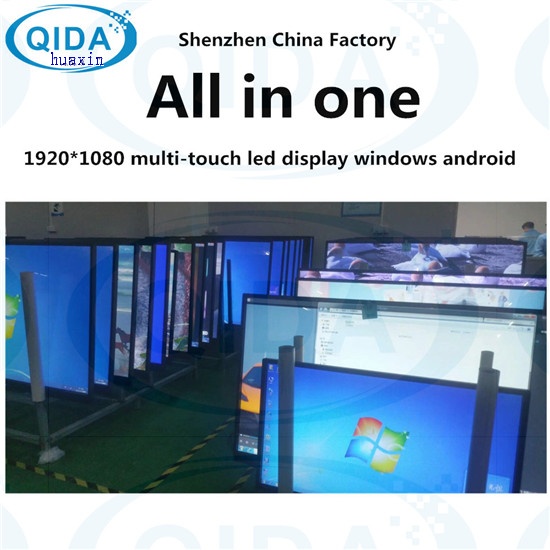

50" 55" 65" 75" 86" 98" Double system windows android LCD display All in one Interactive LED whiteboard for school

Interactive all in one LCD LED whiteboard is a multi functional interactive terminal, which integrated with interactive whiteboard, TV, speaker, touch screen, OPS computer and multi media player.

The interactive led whiteboard is widely used in education, conference and commercial. Such as network multi-media education system, training active recording system, company products demonstration, car shops product experiencing system, building information checking system, hospital queuing system and so son.

Interactive LED whiteboard features:
1. Safe, environmental, metal enclosure, children protection round corner, low power consumption low radiation, energy efficiency.
2. Anti-glare tempered glass, images, contents and videos displayed out are soft and without dazzling.

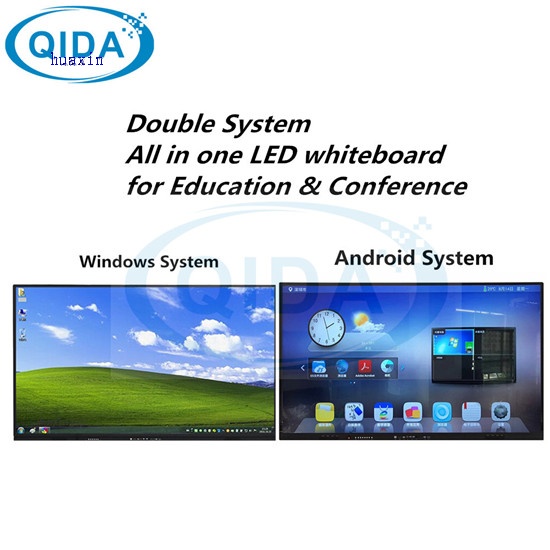

3. Compatible with android and pc double system, surfing without pc, display multi-media content and PPT interactive class. User can install any software according to needs.
4. Wireless, super slim design, can be wall-mounted and mobile stand.
5. Humanized design, easy to maintenance.

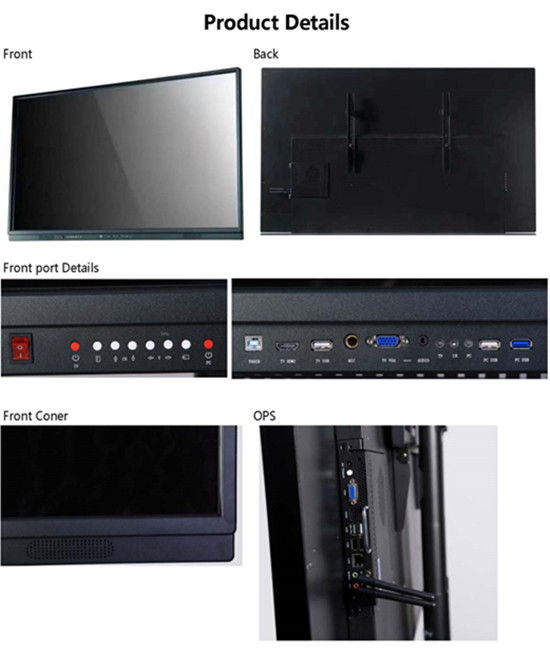

6. There are many buttons for different functions, USB ports for copy files.
7. OPS computer is removable, low power consumption, good heat dissipation, stable performance, and configuration can be customized according to user requirements.

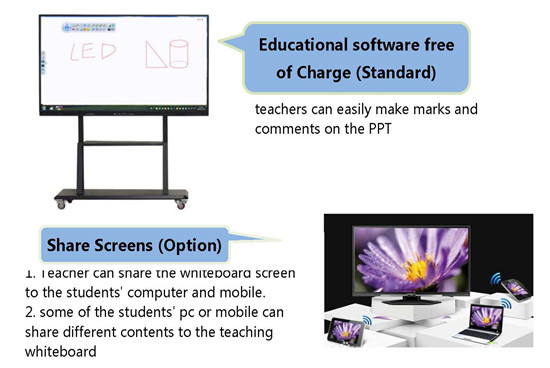

8. Installed with free LED whiteboard software, mobile interactive software, makes class and conference more active.
9. Size available: 50" 55" 65" 75" 86" 98"

Interactive LED whiteboard Specification:

Size



50"

55"

65"

75"

85"

LED panel

backlight

LED

Resolution

1920*1080

1920*1080

1920*1080

1920*1080

3840*2160

Viewing angle

165/165/150/150 (L/R/U/D)

Color

16.7

16.7

16.7

16.7

66.8

Brightness

400cd/m2

400cd/m2

400cd/m2

400cd/m2

500cd/m2

Contrast

5000:1

5000:1

5000:1

5000:1

5000:1

Respons time

4ms

4ms

4ms

4ms

4ms

Display area

1100*620MM

1210*680MM

1430*804MM

1652*931MM

1875*1055MM

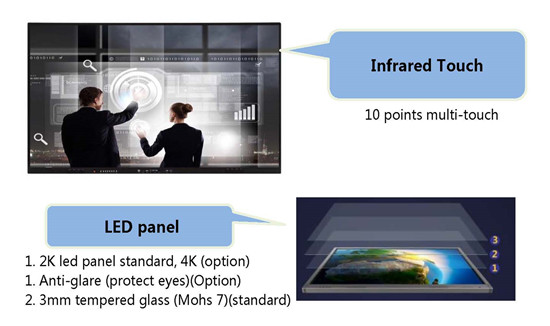

Touch screen

Touch technology

infrared touch

Touch point

6/10 multi-touch

Anti light interference

The light can be illuminated with various angles and the screen can be used normally

Writing style

Finger, pen (any opaque object with a diameter of >5MM)

Touch accuracy

More than 95% of the touch area is + 2mm

Communication mode

Full speed USB2.0/3.0

Surface hardness of writing screen

7 grade explosion proof of physical tempered Mohs

Touch life

The service life is more than 80000 hours

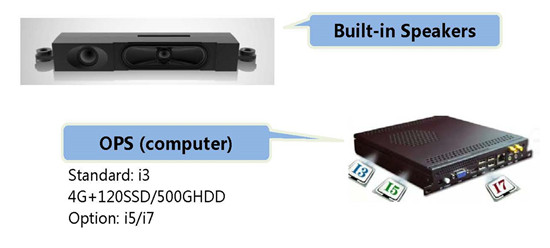

OPS computer

CPU

Intel I3

Memory

Standard 4G DDR3

Hard disk

2.5 inch / 7200 turn 500G

Network card

100/1000M Gigabit Ethernet card

Hardware

Video input

Coaxial antenna ports: 1



Composite video (CVBS) input port: 2



Computer VGA port: 1   (front)



Color difference terminals: 1



HD interface (HDMI): 1



MIC input

Touch USB input:

1

Audio input:

Composite video (CVBS) audio input port: 1



Computer audio input interface: 1



YPbPr audio port: 1



Headphone audio output: 1 group

Special

Television system:

Image standard: PAL



Sound system: BG, DK, I, MN



Decoding: 3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filter, etc.

Speaker

front speaker



Speaker power: 10W*2

Electric

Input voltage:

alternating current: 100-240V 50/60Hz

Power:

≤1130V

Power saving:

<0.5W

Environmental

relative humidity

≤80%

Storage humidity

-10~ +60ºC

working temperature

0~ +40ºC

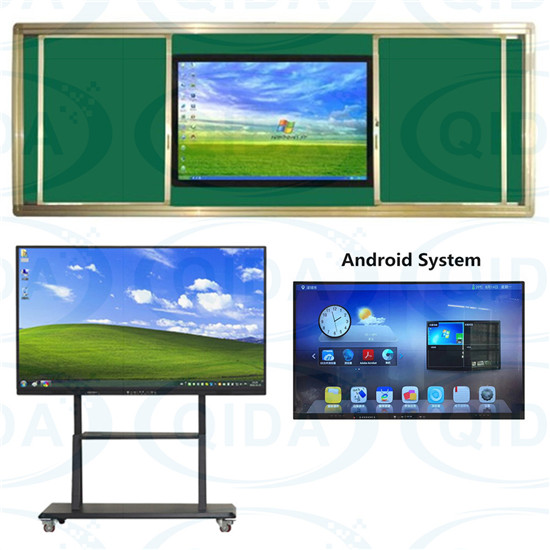

There are three ways for installing the smart lcd board.
1. Combine with traditional green board/whiteboard/black board and interactive lcd whiteboard together, which is widely used in China.

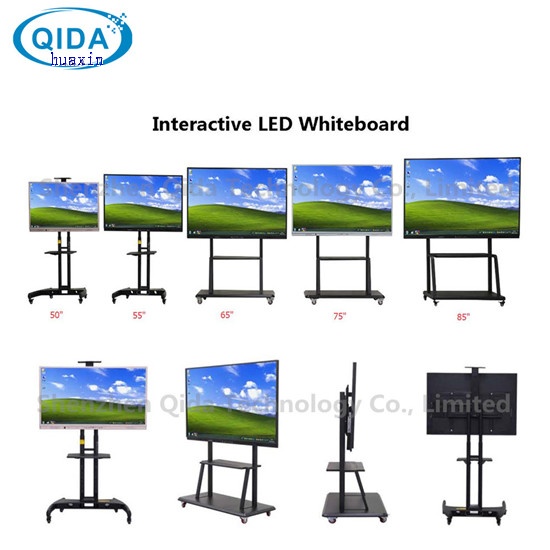

2. mounted on the mobile stand.
3. wa

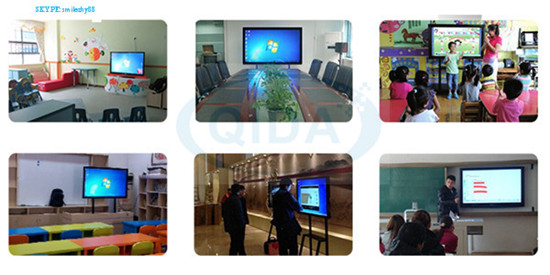

Smart lcd board is widely used in many areas

​
