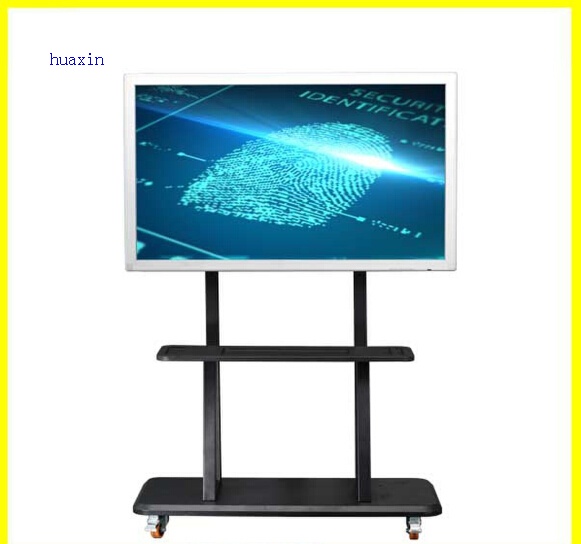

SLD00 Series -- 42"/55"/65"/70"/84" PC All in One Interactive Whiteboard

SLD00 Series is defined for the bigger size of 42" to 84" PC All in One Interactive Whiteboard which contains a computer system and touch system, this kind of machines are widely used for any public places or areas, such as airport, railway station, shopping mall, exibition, product showing...and so on;

We've already developed more THREE different solutions for SLD00 series displays(Basic Solution: AD-T A20/AIO-T G2010/AIO-T I3 3240/DS V59).

Multi-functions and different solutions can absolutely satisfy customer's different higher requirements.

Specifications

Display
Size	42"	55"	65"	70"	84"
Solution-1: AD-T A20	SLD4200AD-T A20	SLD5500AD-T A20	SLD6500AD-T A20	SLD7000AD-T A20	SLD8400AD-T A20
Solution-2:AIO-T G2010	SLD4200AIO-T G2010	SLD5500AIO-T G2010	SLD6500AIO-T G2010	SLD7000AIO-T G2010	SLD8400AIO-T G2010
Solution-3: AIO-T I3 3240	SLD4200AIO-T I3 3240	SLD5500AIO-T I3 3240	SLD6500AIO-T I3 3240	SLD7000AIO-T I3 3240	SLD8400AIO-T I3 3240
Solution-4: DS V59		SLD5500DS V59	SLD6500DS V59 SLD6500DS-T V59	SLD7000DS V59
EXTENDED:		SLD5500AIO-T NUC DCCP847DYE

Resolution	1920*1080	1920*1080	1920*1080	1920*1080	3480*2160
Display Size	930*523mm	1209*680mm	1428*803mm	1548*872mm	1860*1046mm
Display Ratio	16:09	16:09	16:09	16:09	16:09
Brightness	450cd/m2	400 cd/m2	360 cd/m2	350 cd/m2	450cd/m2
Contrast	5000:1	6000:1	4000:1	6000:1	6000:1
Angle	89°	89°	89°	89°	89°
Color	16.7M	16.7M	16.7M	16.7M	16.7M
Response Time	8ms	6ms	8ms	4ms	6ms
Life	50000h	50000h	50000h	50000h	50000h

Machine
Operating Temperature	0℃ to 50℃	0℃ to 50℃	0℃ to 50℃	0℃ to 50℃	0℃ to 50℃
Operating Humidity	10 to 80％	10 to 80％	10 to 80％	10 to 80％	10 to 80％
Power	AC110V~240V	AC110V~240V	AC 110V~240V	AC 110V~240V	AC 110V~240V
Single Size	1013.460670mm	1345.6816.2115.5mm	1532906115mm	1655975118mm	19041079130
N.W.(kgs)	30KGS	58KGS	58kgs	85kgs	100kgs
Package Size	1050770210mm	16001070380mm	17801150310mm (carton packing) 18601230390mm (wooden packing)	18001300125mm Packing by aviation case	21001200150 Packing by aviation case
G.W.(kgs)	32.5KGS	65KGS	70kgs	90kgs	130kgs
Accessories	AC Power cable HDMI cable Remote control Keys User Manual Certificate Warranty	AC Power cable HDMI cable Remote control Keys User Manual Certificate Warranty	AC Power cableHDMI cable Remote control Keys User Manual Certificate Warranty	AC Power cable HDMI cable Remote control Keys User Manual Certificate Warranty	AC Power cable HDMI cable Remote control Keys User Manual Certificate Warranty

AD-T Solution	System	Android 4.1/4.2 and above 42"/55"/65"/70"/84"PC,All,in,One,Interactive,Whiteboard
	Sound	8Ω5W Box Speaker；Integrated HI-FI 100dB Audio Codec
	Video	720p@60fps encoding; 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported; Comply with RTSP, HTTP,HLS,RTMP,MMS streaming media protocols
	Memory	1G; NAND Flash controller with 64-bit ECC
	Input port	Support CVBS/YPbPr/VGA and HDMI;
	Basic function	By B / S architectures, whenever when or where you can control the terminal advertising player through 3G, WLAN, WIFI network Supports all video, file, network streaming media format Support split screen, support combination and design program content; Remotely control time, volume, monitoring groups, on-demand and spots Support for USB playback , USB update , USB upgrade function Perfect match mainstream applications, Greatly facilitate the secondary development for client customized;

AIO-T G2010 Solution	System	WINDOWS or LINUX system
	Sound	8Ω5W Box Speaker
	Industrial motherboard	H61U, support automatic Wake Up Events
	Storage	500G HDD, or 64G SSD hard drive
	Main Chip	Intel G2010 / Dual Core 2.8GHz
	Memory	4G
	Input port	VGA, HDMI, AV, USB, RJ45, PS / 2
	Features	X86 architecture work Host Through WLAN, WIFI access network Supports all video, documents, network streaming media format Perfect match mainstream applications, Greatly facilitate the secondary development for client customized;

AIO-T I3 3240 Solution	System	WINDOWS or LINUX system
	Sound	8Ω5W Box Speaker
	Industrial motherboard	H61U, support automatic Wake Up Events
	Storage	500G HDD, or 64G SSD hard drive
	Main Chip	Intel I3 3240 / Dual Core 3.4GHz
	Memory	4G
	Input port	VGA, HDMI, AV, USB, RJ45, PS / 2
	Features	X86 architecture work Host Through WLAN, WIFI access network Supports all video, documents, network streaming media format Perfect match mainstream applications, Greatly facilitate the secondary development for client customized;

DS V59 Solution	Processor	MSTER V59 Format: MPG,MPG-1,MPG-2,MPG-4, AVI,MP4,DIV,TS,TRP, WMV,M2TS,MKV,RM,RMVB;
	Video Support	1920*1080@60Hz; 24bit; 30frm/s
	Photo Support	Format: JPEG,BMP,PNG;
	Audio Support	Format: MP3,WMA; 32kbps to 448kbps;
	Sound	8Ω5W Box Speaker;
	Interfaces	HDMI Input: 1 DVI Input: 1 VGA Input: 1 Audio Input: 1 Headset Output: 1 AC-in: 1
